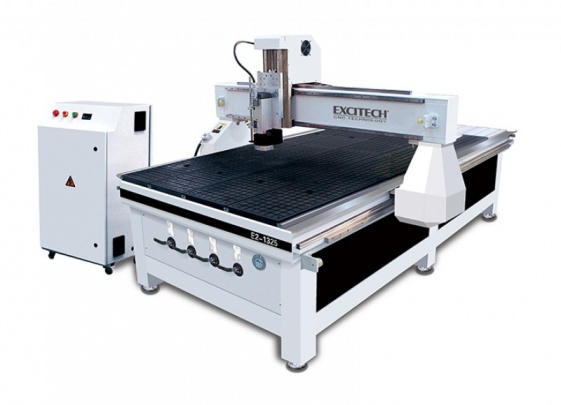

E2 MTC Product
back
-
High-performance all-round machinery with extraordinary value, but at a very economical price. Constructed with world-class components, consistent high performance.
-
Vacuum table using high-density (1.3-1.45g/cm) material with great suction strength, comfortably accommodating all sizes of work piece.
-
Highly efficient machine permitting faster production, cutting speed over 18m/min. Low vibration and smooth motion ensure higher work piece quality.
APPLICATIONS
-
Furniture:ideally suitable for processing cabinet door, wooden door, solid wood furniture, panel wood furniture, windows, tables and chairs, etc.
Other wooden products: stereo box, computer desk, musical instruments, etc.
-
Well-suited for processing panel, insulating materials, plastic, epoxy resin, carbon mixed compound, etc.
-
Decoration: acrylic, PVC, density board, artificial stone, organic glass, soft metals like aluminum and copper, etc.l stone, graphite, PVC, EPS, soft metals like aluminum and copper and other non-metal carbon mixed compound,etc.
| SERIES |
E2-1325 |
E2-1530 |
E2-2030/2040 |
| Traveling Size | 2500*1260*200/300mm | 3100*1570*200/300mm |
3100*2100*200/300mm 4020*2100*200/300mm |
| Working Size | 2480*1240*180/280mm | 3080*1550*180/280mm |
3080*2050*180/280mm 4000*2050*180/280mm |
| Table Size | 2500*1230mm | 3100*1560mm |
3100*2050mm 4020*2050mm |
| Optional Working Length | 3000/5000/6000mm | ||
| Transmission | X/Y Rack and Pinion;Z Ball Screw | ||
| Table Structure | T-Slot Vacuum/ T-slot | ||
| Spindle Power | 3.5/4.5/6.0kW | ||
| Spindle Speed | 18000r/min | ||
| Traveling Speed | 25m/min | ||
| Working Speed | 15m/min | ||
| Driving System | Stepper/Delta | ||
| Voltage | AC380/50HZ | ||
| Controller | Hand-Held Controller | ||
