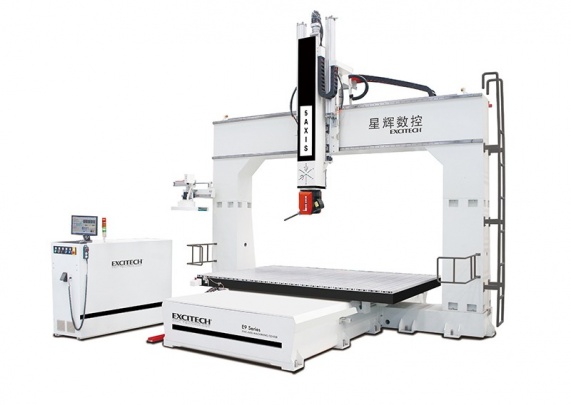

E9 Venture Five-Axis Machining Center
back.jpg)
-
An entry-level five-axis machining center with world top-class controller—designed for the most demanding processing requirements, maximum precision, and all - round excellece
-

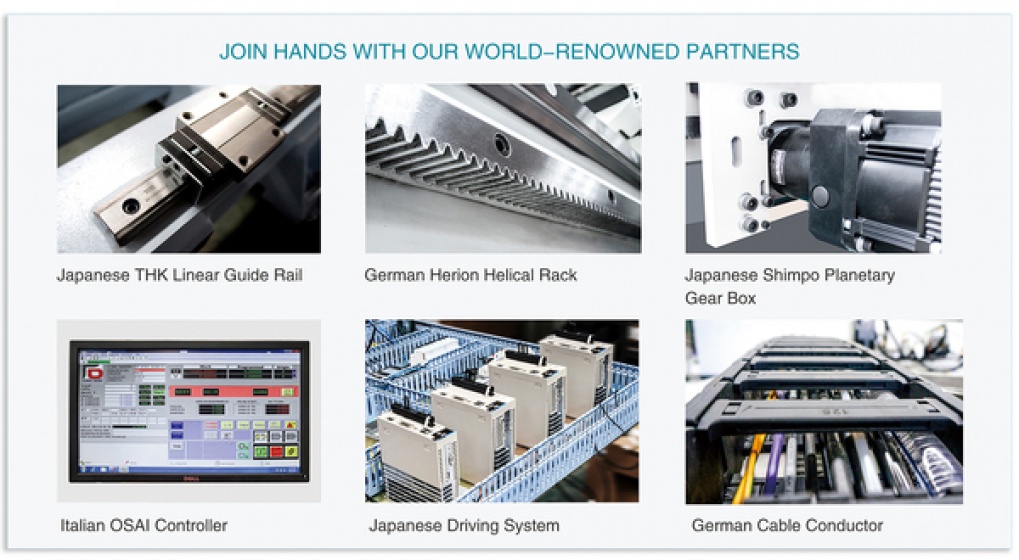

Features world top class components
-
CNC machining cent er with 5 synchronizing interpolated axes; Real-Time Tool Center Point Rotation (RTCP), well suited for 3D curved surface processing
-
Twin table design doubles the productive efficiency by allowing loading and unloading operations on one station without interrupting the work cycle
APPLICABLE MATERIAL
Wood ,EPS,resin,plaster,other non-metal carbon mixed compound,stone artficial stone, graphite, PVC, etc.
| SERIES |
E9-1224D |
E9-1530D |
E9-2030D |
| Traveling Size | 1850*3100*950/1300mm | 2150*3700*950/1300mm | 2650*3700*950/1300mm |
| A/C Axis | A：±120°，C：±245° | ||
| Working Size | 1200*2400*650/1000mm | 1500*3000*650/1000mm | 2000*3000*650/1000mm |
| Table Size | 1200*2400mm | 1550*3050mm | 2100*3050mm |
| Transmission | Y rack and pinion drive, X/Z ball screw drive | ||
| Spindle Power | 10/15kW | ||
| Spindle Speed | 22000r/min | ||
| Traveling Speed | 60/60/20m/min | ||
| Working Speed | 20m/min | ||
| Tool Magzine | Carousl | ||
| Tool Slots | 8 | ||
| Driving System | Yaskawa | ||
| Voltage | AC380/50HZ | ||
