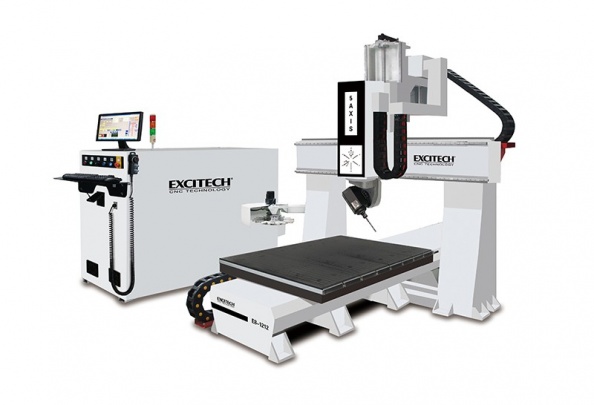

E8 Mini Five-Axis Machining Center
back.jpg)
-
An entry-level five-axis machining center with world top-class controller—designed for the most demanding processing requirements, maximum precision, and all - round excellece
-

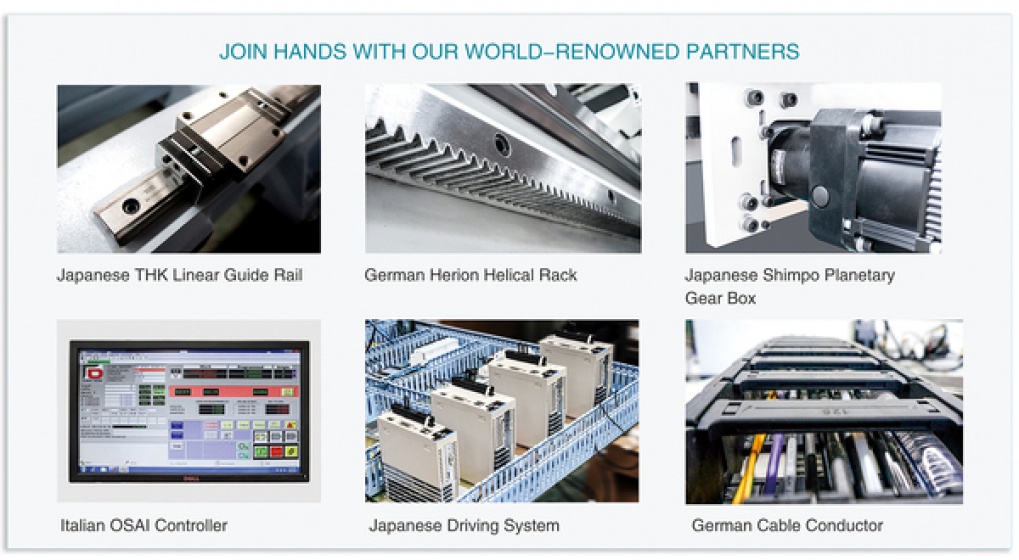

Features world top class components
-
CNC machining cent er with 5 synchronizing interpolated axes; Real-Time Tool Center Point Rotation (RTCP), well suited for 3D curved surface processing
-
Twin table design doubles the productive efficiency by allowing loading and unloading operations on one station without interrupting the work cycle
APPLICABLE MATERIAL
Wood ,EPS,resin,plaster,other non-metal carbon mixed compound,stone artficial stone, graphite, PVC, etc.
| SERIES |
E8-1212D |
E8-1224D |
| Traveling Size | 1720*1820*750mm | 1720*3040*750mm |
| Table Size | 1200*1200mm | 1200*2400mm |
| A/C Axis | A:±185° C：±320° | |
| Transmission | X/Y Rack and Pinion Drive, Z Ball Screw Drive | |
| Spindle Power | 8.5 kW | |
| Traveling Speed | 60/60/20 m/min | |
| Working Speed | 20 m/min | |
| Tool Magzine | Carousel 8 Slots | |
| Driving System | Yaskawa | |
