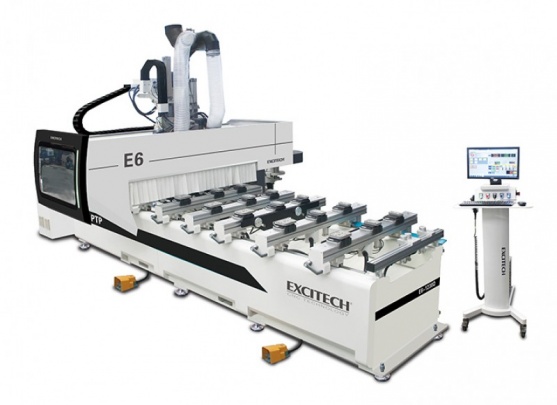

E6 PTP Work Center

back

◆ An all-rounder work center suitable for milling, routerting, drilling, side milling, sawing and other applications.
◆ Ideal for panel furniture, solid wood furniture, office furniture, wooden door productions, as well as other non-metal and soft metal applications.
◆ Double work zones guarantee non-stop work cycle--operator can load and unload workpiece on one zone without interrupting the machine operation on the other.
◆ Features worlds first class components and strict machining procedures.

SERIES E6-1230D E6-1243D E6-1252D
Traveling Size 3400*1640*250mm 4660*1640*250mm 5550*1640*250mm
Working Size 3060*1260*100mm 4320*1260*100mm 5200*1260*100mm
Table Size 3060*1200mm 4320*1200mm 5200*1200mm
Transmission X/Y rack and pinion drive;Z ball screw drive

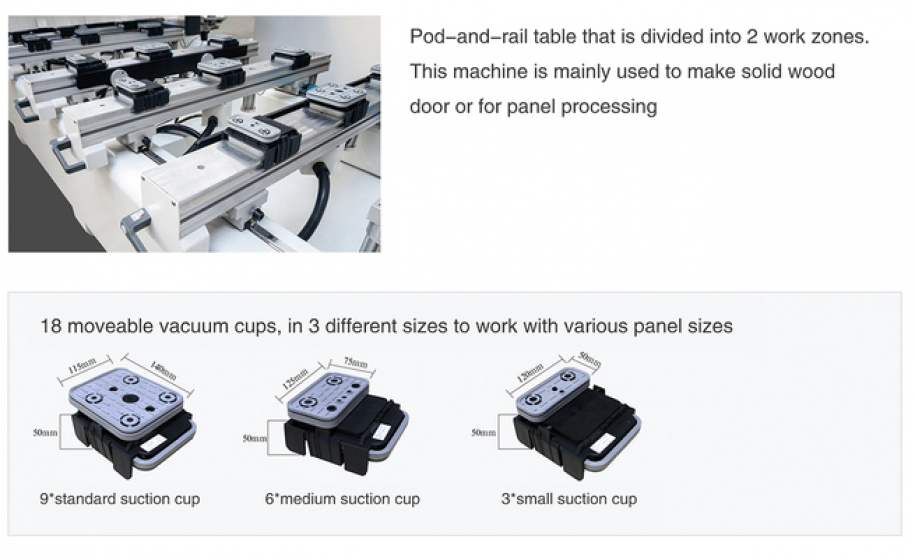

Table Structure Pods and Rails
Spindle Power 9 / 12kW
Spindle Speed 24000r/min
Traveling Speed 80m/min
Working Speed 20m/min

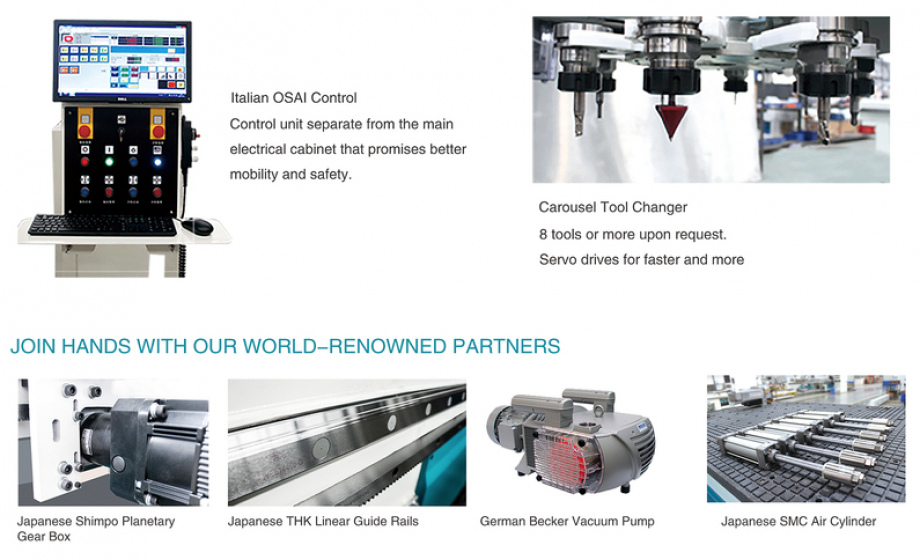

Tool Magzine Carousel
Tool Slots 8

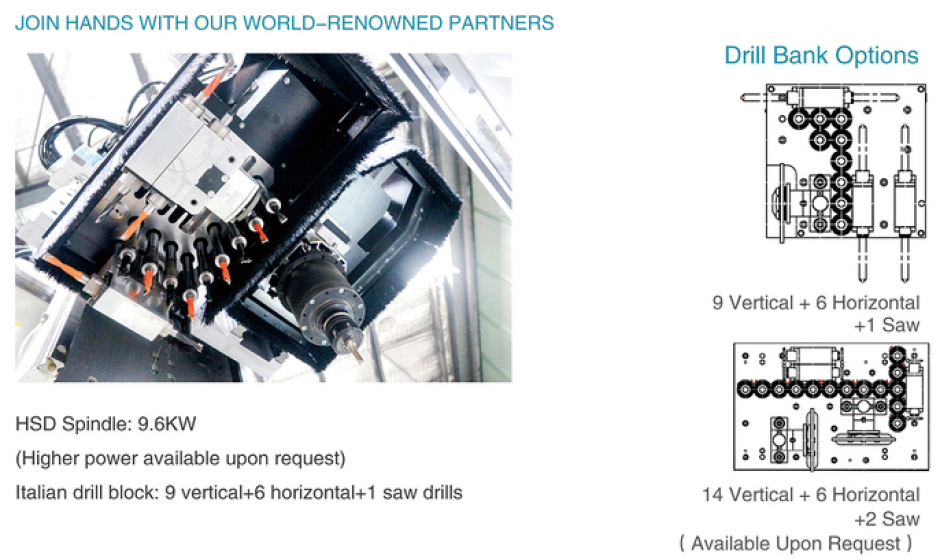

Drilling Bank Config. 9 Vertical+6 Horizontal+1 Saw
Driving System Yaskawa
Voltage AC380/50HZ
Controller OSAI/Syntec
