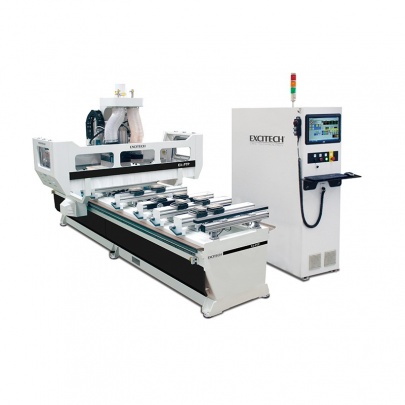

E3 PTP Work Center
back
-
This all-rounder work center that meets the demands of every budget is suitable for milling, routerting, drilling, side milling, sawing and various other applications.
-
Ideal for panel furniture, solid wood furniture, office furniture, wooden door productions, as well as other non-metal and soft metal applications.
-
Features worlds first class components and strict machining procedures.
★All DIMENSIONS SUBJECT TO CHANGE
| SERIES | E3-0924D | E3-0930D |
| Traveling Size | 1310*2720*160mm | 1310*3330*160mm |
| Working Size | 900*2440*80mm | 900*3050*80mm |
| Table Size | 900*2440mm | 900*3050mm |
| Transmission | X/Y Rack and Pinion Drive;Z Ball Screw | |
| Spindle Power | 5.5kW | |
| Spindle Speed | 18000r/min | |
| Traveling Speed | 60m/min | |
| Working Speed | 20m/min | |
| Drill Bank Config. | 9 Vertical +6 Horizontal +1 Saw | |
| Driving System | Yaskawa | |
| Voltage | AC380/50HZ | |
| Controller | OSAI | |
